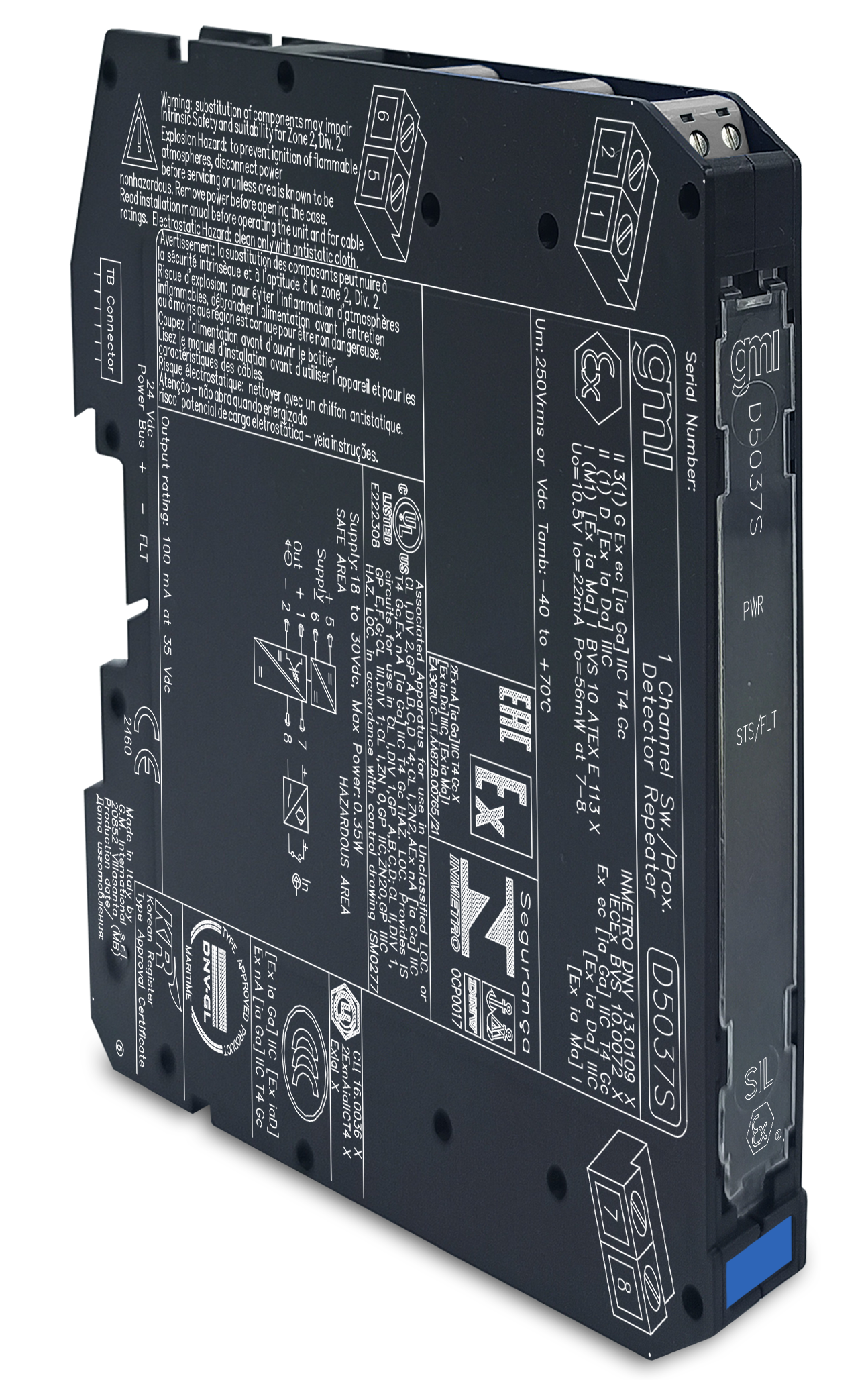

Supply
|
| Voltage |
24 Vdc nom (18 to 30 Vdc), reverse polarity protected. |
| Current Consumption |
12 mA @ 24 Vdc with short circuit input and transistor closed, typical. |
| Power Dissipation |
0.30 W @ 24 Vdc with short circuit input and transistor closed, typical. |
Input
|
| Input switching current levels |
ON ≥ 2.1 mA, OFF ≤ 1.2 mA. |
| Fault current levels |
open fault ≤ 0.2 mA, short fault ≥ 6.8 mA |
| Input equivalent source |
8 V 1 kΩ typical (8 V no load, 8 mA short). |
Output
|
| Type |
Voltage free SPST optocoupled open-collector transistor. |
| Open-collector/drain rating |
100 mA @ 35 Vdc (≤ 1.5 V voltage drop). |
| Leakage current |
≤ 50 μA @ 35 Vdc. |
| Response time |
≤ 100 μs. |
| Frequency response |
5 kHz maximum. |
Isolation
|
| Test Voltage |
I.S. In/Out 2.5 kV; I.S. In/Supply 2.5 kV; I.S. In/ I.S In 500 V; Out/Supply 500 V; Out /Out 500 V. |
Environmental conditions
|
| Operating temperature |
temperature limits –40 to +70 °C. |
| Storage temperature |
temperature limits –45 to +80 °C. |
Safety description
|
| Equipment |
Associated apparatus and non-sparking electrical equipment. |
| Safety parameters |
Uo = 10.5 V, Io = 22 mA, Po = 56 mW at terminals 7-8, 9-10.
Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C. |
Mounting
|
| Type |
DIN-Rail 35 mm, with or without Power Bus or on custom Term. Board. |
| Weight |
about 110 g. |
| Connection |
by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG). |
| Dimensions |
Width 12.5 mm, Depth 123 mm, Height 120 mm. |
